Surface quality, and angle or flatness of face of die. Shapes and radius at the mouth of the die.

The quality of washers, flat heads, radii, UBS washers, and serrations is directly transferred to the part being headed. The shape in the die is the shape on the finished part.

Inspection equipment with contour tracing capabilities is a very effective way of containing the elusive problems these shapes sometimes harbor. It is essential on specific parts. With the tracing, the customer knows what quality is being delivered from the supplier. A report can be produced in hard copy by plotter up to 100x allowing close inspection of every detail.

The report can also be generated by software interpreting the data. Depending on the software used, the results can give a vast amount of needed information. These two methods of reporting are capable of giving results accurate beyond other inspection methods. Both of these reports are available to the customer in hard copy to support it's data requirements to the end user.

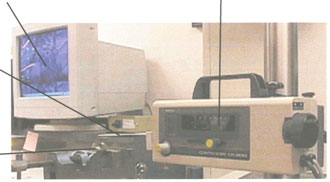

Data viewing and control of printing options. The trace can be viewed and many inspection options can be exercised by the software.	Data collection point controlling x and y axis, speeds and other measuring criteria.
Stylist used to trace part. There are several options used here to trace different shapes and locations on or in the die. Part to be inspected.
SAMPLE OF TRACE AND DATA OUTPUT ON FOLLOWING PAGE
